48v 100ah 200ah a l'engròs d'energia híbrida a la paret d'emmagatzematge solar recarregable de liti lifepo4 paquet de bateries

2023-08-18 06:01

Especificació

Model núm	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
Voltatge	48/51.2V	48/51.2V	48/51.2V
Capacitat	100Ah	150Ah	200Ah
Energia	5.12kwh	7.68kwh	10.24kwh

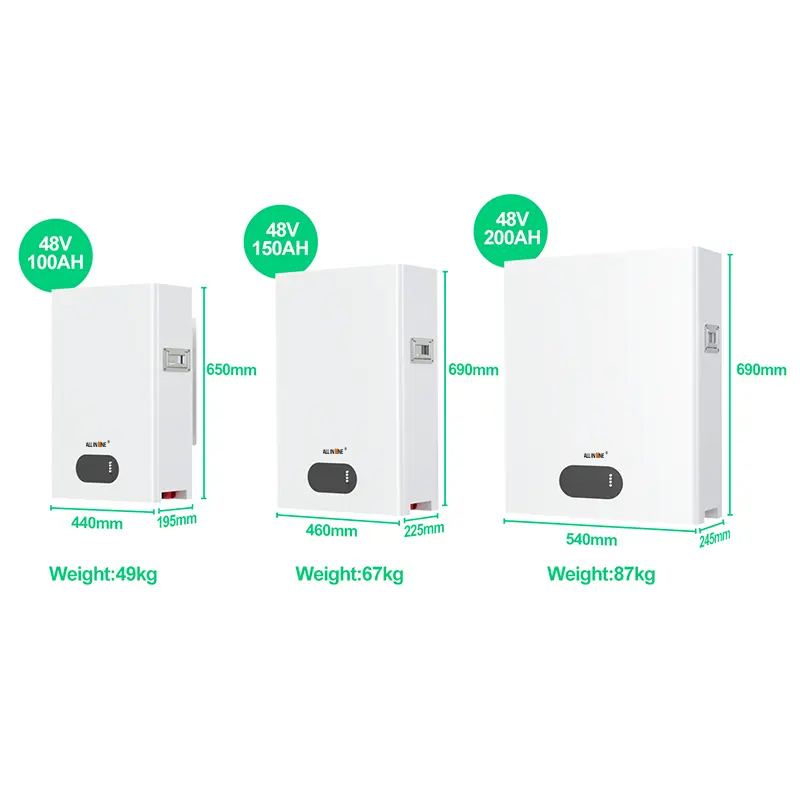

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
Pes	49 kg	67kg	87kg
Paràmetres bàsics
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
Temperatura de funcionament	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
Temperatura del magatzem	0°C a 45°C @60+/-25% d'humitat relativa	0°C a 45°C @60+/-25% d'humitat relativa	0°C a 45°C @60+/-25% d'humitat relativa
Bateria de liti estàndard	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
Potència màxima	5120W	7680W	10240W

La nostra fàbrica

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

FAQ

P: Ets empresa comercial o fabricant?
A: We are ALL IN ONE original factory.

P: Puc tenir mostres per provar? I quin és el termini de sortida de la comanda de mostra?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

P: Proveu servei postvenda?
R: Sí, la garantia és de 12 mesos, si hi ha algun problema de qualitat per la nostra part en aquest període, podem enviar-ne una de substitució.

P: Accepteu OEM / ODM?
R: Sí, està disponible.

P: Teniu capacitat real de la bateria?
R: Totes les nostres bateries amb grau A, capacitat 100% nova i real.

P: Quin tipus de certificats teniu?
R: Podem proporcionar CE, ROHS, FCC, IEC62133, MSDS, UN38.3 si la quantitat de la comanda és gran.

P: Teniu MOQ?
R: No limitat. La petita comanda també és benvinguda. Més quantitat té millor preu, comprovarem el millor preu per a vostè.

P: Quin és el vostre termini de pagament?
R: Adoptem la forma de pagament T / T, Paypal, Alibaba, etc.

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
