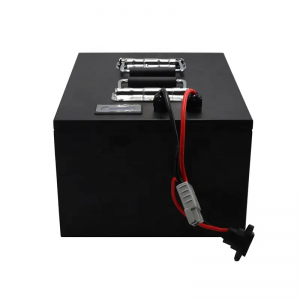

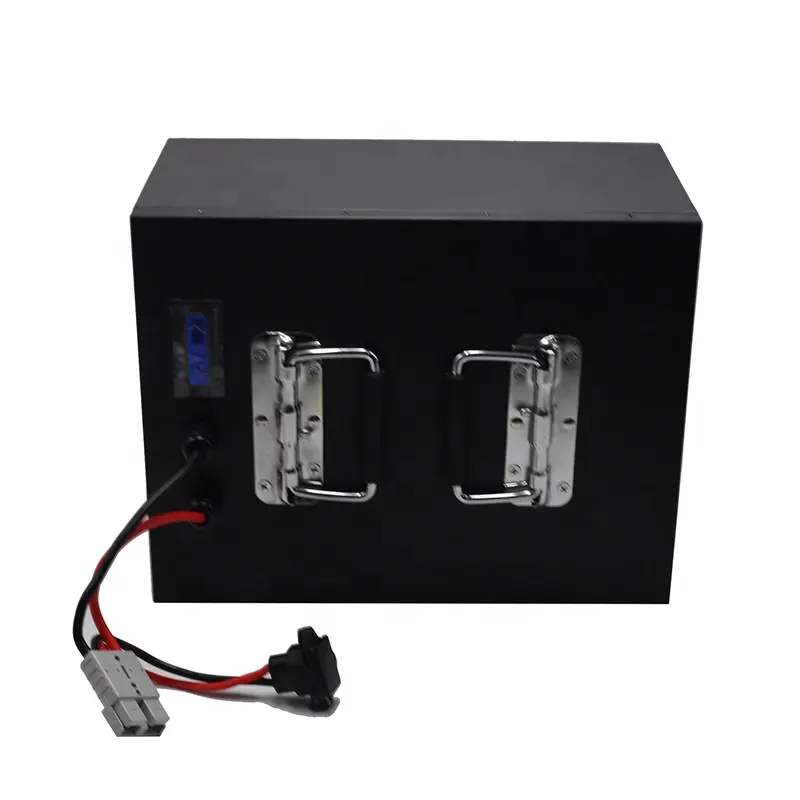

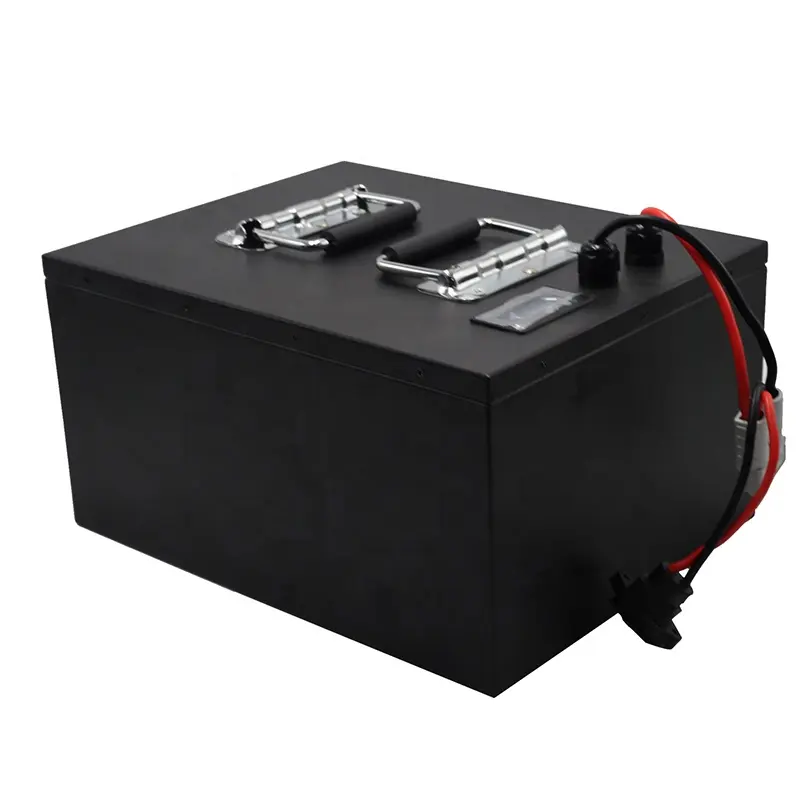

Paquet de bateries personalitzades LiFePO4 72v 60ah Bateria de vehicle elèctric Paquet d'ions de liti per a cotxes EV

2023-06-06 02:13

Especificació

Nom de la marca	TOT EN UN
Model	AIN7260
Garantia	5 anys
Tensió nominal	76.8V
Capacitat nominal	[email protected]/customize
Energia	4416Wh
Resistència interna	≤50mΩ
Cicle de vida	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
Autocàrrega	≤3,5% mensual a 25 ℃
Voltatge de càrrega màx	87.6 V
Mode de càrrega	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
Corrent de càrrega	30A
Corrent de càrrega màx	60A
Corrent de descàrrega	30A
Max. discharge Continuous Current	60A
Corrent de pols màx	120A(<3S）
Voltatge de tall de descàrrega	60V
Temperatura de càrrega	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% Humitat relativa
Temperatura de descàrrega	-20 ℃ a 60 ℃ (-4 ℉ a 140 ℉) @ 60 ± 25% Humitat relativa
Temperatura del magatzem	0 ℃ a 45 ℃ (32 ℉ a 113 ℉) @ 60 ± 25% Humitat relativa
Resistència a la pols d'aigua	IP55
Cel·la i format	LFP  60AH 24S1P/customize
Carcassa	Metal Case
Dimensió (L * W * H * TH)	personalitzar
Pes	50kg
Terminal	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
Mètode de càrrega	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
Certificat	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

Recordatori

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

Aplicació

La nostra fàbrica

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

Embalatge i enviament

Embalatge

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

Enviament

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



FAQ

P: Com he de pagar? Quins modes de pagament accepteu?
A: T/T, PayPal, Western Union.

P: És acceptable un ordre de mostra?
R: Sí, per a la majoria de les bateries, les comandes de mostra per provar la qualitat són raonables i acceptables.

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: What is your warranty?
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. Per als danys causats, com ara la protecció de la bateria / soldada, el paquet de bateries sense protecció BMS causat per la càrrega.
