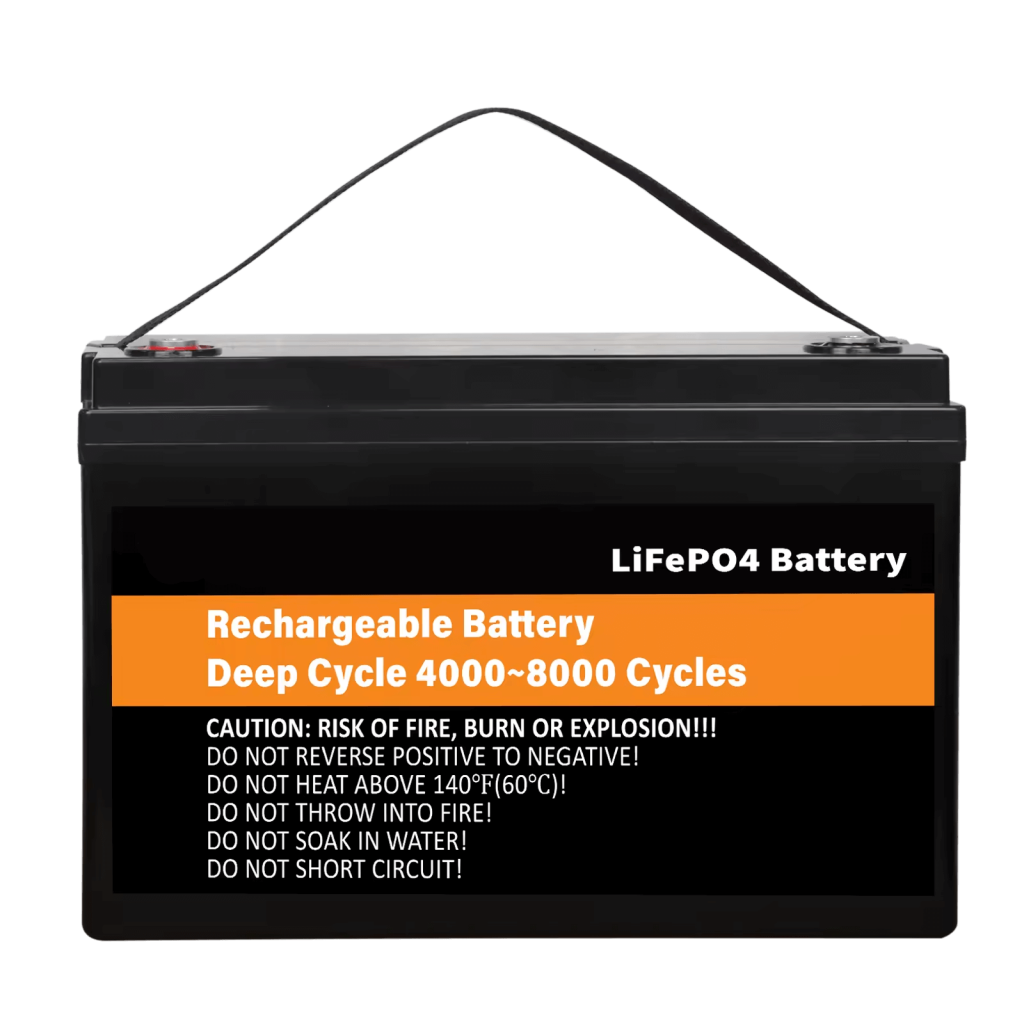

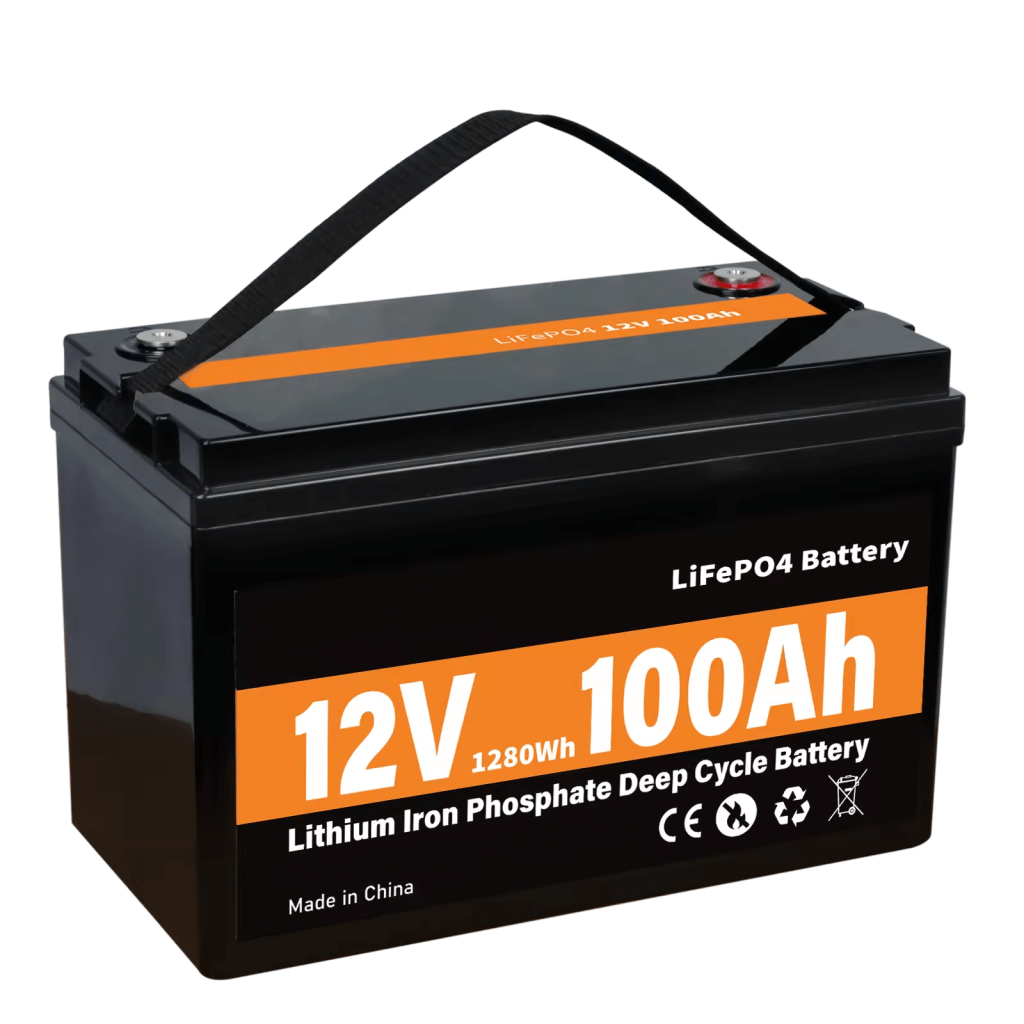

Bateria de potència d'emmagatzematge d'energia solar LiFePO4 12V 100Ah

2024-02-28 03:19

Especificació

Overview	Grade A Lifepo4 12V 100Ah 200Ah 24V 100Ah Solar Energy Storage Battery for Home Lithium ion Battery Pack #Grade A Blade Pouch Cell #Built-in 100A BMS #LCD Capacity Display #2 Hrs Charge Up to 80%, 50A Charging Current #IP65 Rated Gives Protection Against Low Pressure Water #5-Year Warranty
Especificacions	BASIC SPECIFICATIONS	Model: 12V 100Ah
		Rechargeable:Yes
		Cell Type:LiFePO4 (LFP) Pouch Cell
		Dimensions: L13.19 * W7.28 * H8.46 ” L335 * W185 * H215 mm
		Case Material:ABS
		Warranty:5 Years
	ELECTRICAL     SPECIFICATIONS	Nominal Voltage: 12.8V
		Nominal Capacity: 100Ah
		Nominal Energy: 1280 Wh
		Standard Charge Voltage: ≤14.6 V
		Max Charge Current: 50A
		Discharge Cut-Off Voltage: ≥10V
		Max Discharge Current: 100A
		Internal Resistance: ≤30mΩ
	PERFORMANCE SPECIFICATIONS	Cycle Life: ≥4000 Times (80%DoD)
		Service Life: 10 Years (25°C/77°F）
		Charge Temperature Range: 0~45°C (32~113°F)
		Discharge Temperature Range: -20~60°C (-4~140°F)
		Protection: IP65, Built-in BMS



In addition to the LiFePO4 battery shape and temperature conditions, we can customize specifications and BMS: voltage, capacity , charge current, discharge current and etc.If you are interested in our products, please don't hesitate to contact us at any time.

Key features

1. Vehicle-grade craft, there are multiple isolation and fixing inside the battery pack, which is conducive to heat dissipation
2.  The shell is anti-aging, anti-corrosion, fireproof and waterproof

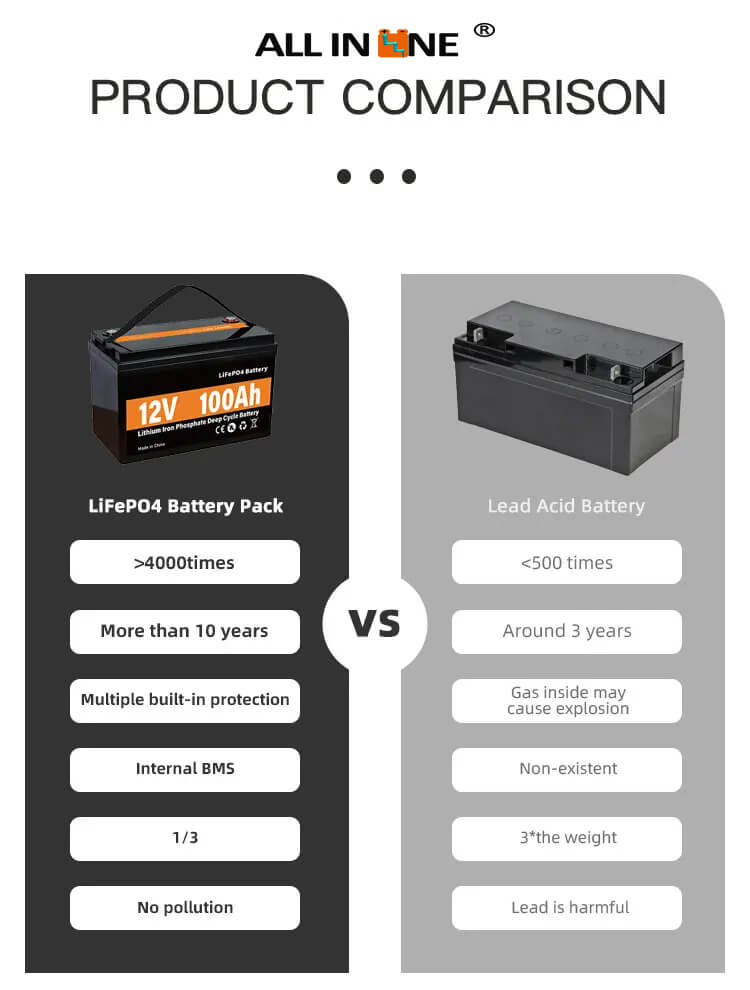

3. It replaces lead-acid batteries, which is 50% lighter
4.  Wide temperature operation
5.  Safe and reliable, no explosion
6.  Variety of protections, overcharge, overcharge, over current, over-temperature protection
7.  Easy operation, plug and play
8. More than 6000 cycle life

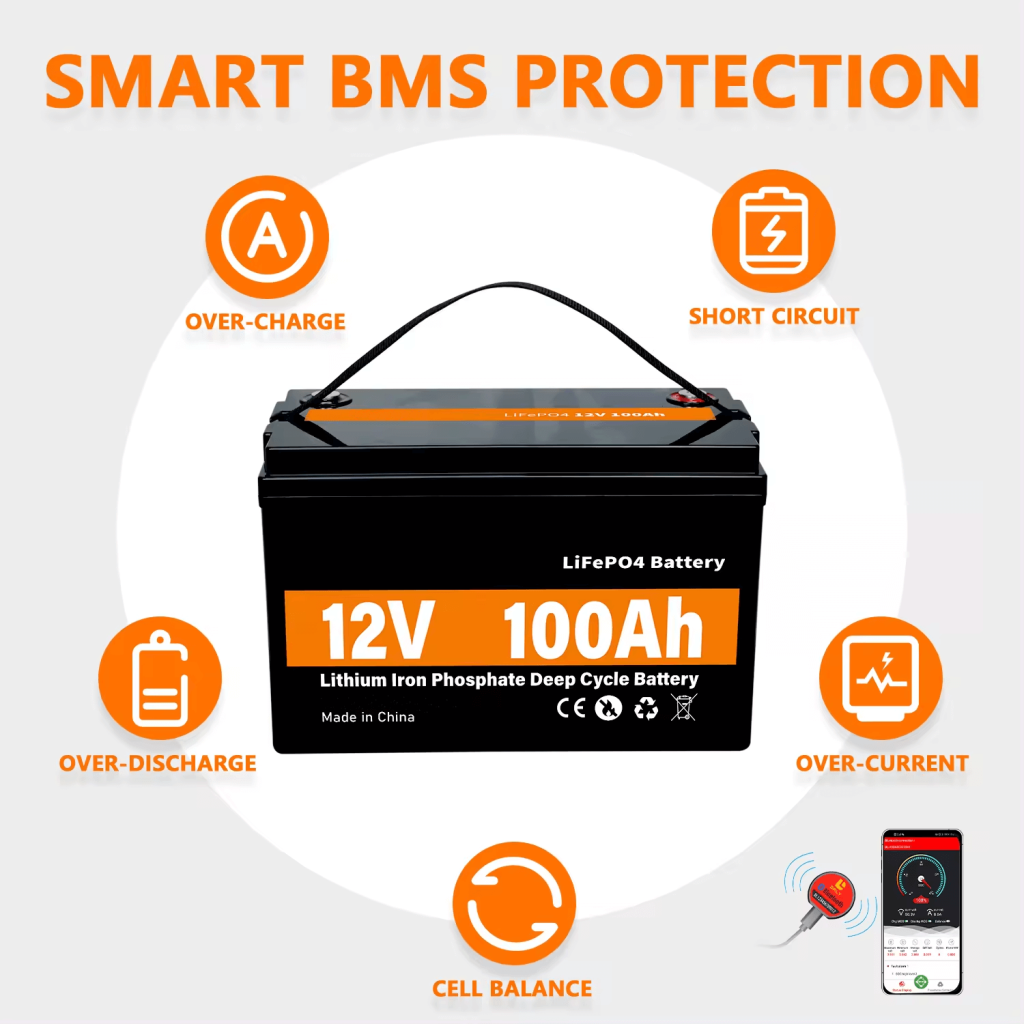

Protecció global integrada en BMS
1. sobre protecció carregada
2.Sobre protecció descarregada
3. Protecció tèrmica
4.Protecció de càrrega sobre
5. sobre protecció actual

Aplicació

Aplicacions de bateries LiFePO4
Widely used in RV, camping car, golfcart, sightseeing car, marine, yacht, solar backup etc.

La nostra fàbrica



Packing And Shipment



FAQ

1.Q: Do you support a sample order?

A: Yes, welcome to order sample, we have warehouses in the United States and Europe, some samples can be quickly shipped.

2.Q: Does the product have a built-in BMS?

A: Yes, intelligent BMS including JBD/PACE/SmarTec built-in to ensure batteries are under smartly managed.

3.Q: Can your company accept customized order?

A: Of course, customization is our strength.

4.Q: Can the battery pack be compatible with the inverters on the market?

A: Yes sir, our packs are compatible with more than 20 inverter brands on the market including Victron, Goodwe, Solis, Growatts, Voltronics, Deye and other famous brands.

5.Q: How is the Warranty?

A: 5 years up-to its usage.

6.Q: Do you have any certifications?

A: CE, UN38.3 and MSDS, Pack UL1973.

7.Q: How's the delivery way and time?

A: Overseas warehouse (USA & Euro) will make quick delivery for small order. 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.Q: Do you have real factory?

A: Yes, our factory is in Anhui Province. We welcome you to visit our factory.
